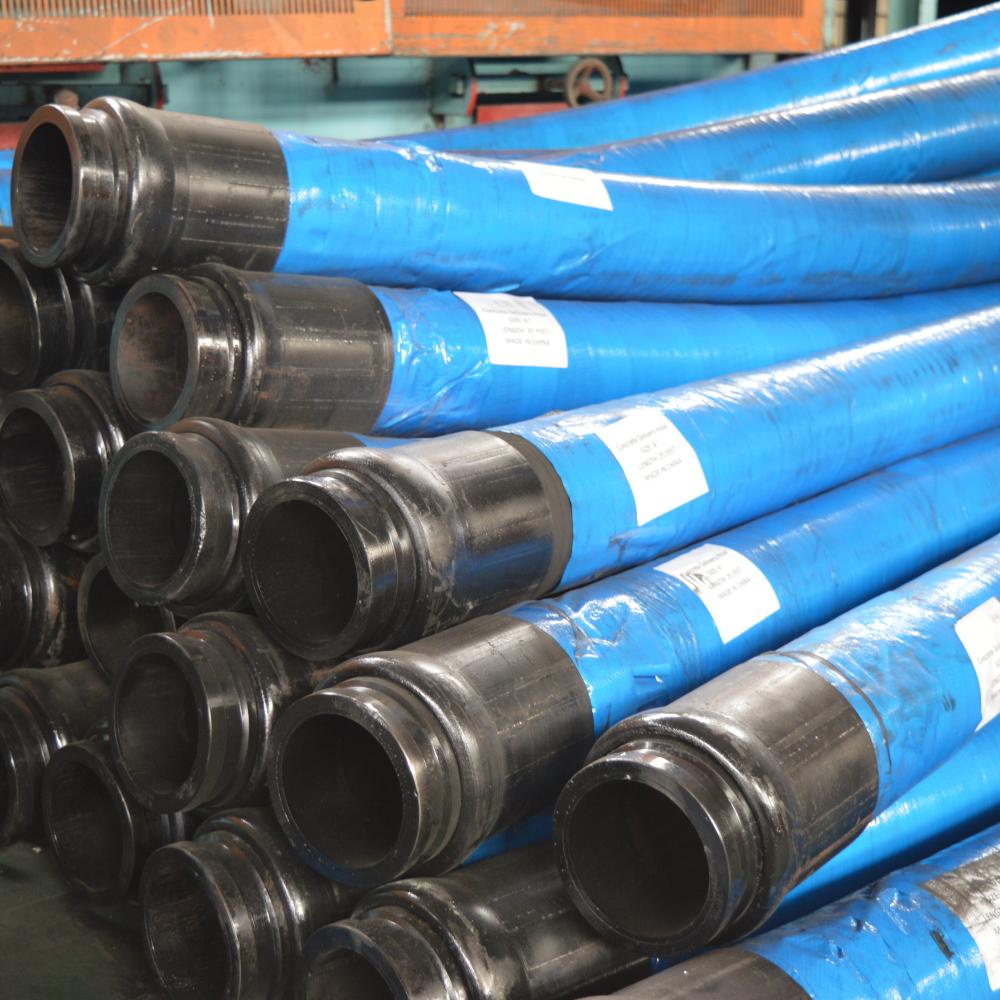

Concrete Delivery Hose
Symboflex, the symbol of flex!
Symboflex, the symbol of flex!
Application:
The concrete hose are high pressure pumping components designed to pump concrete and other abrasive mixtures, apply to construction machinery like pump truck to delivery concrete etc.
Features:
1.Highly abrasion resistant.
2.Good resistance to ozone and weather.
3.NR/SBR rubber compound tube and cover (cloth impression) with multi ply synthetic fabric or steel wire braiding.
4.There are optional inner diameter, and length in terms of size. You can also choose different W.P and B.P to match your devices.
Material:
Tube: Black,smooth,Abrasion resistant NR/SBR compound
Reinforcement: 2”-3” : two steel wire braiding, 3 1/2”-6” four layers steel cords.
Cover: Black,smooth cloth impression,NR/SBR compound abrasion cover,resistant to abrasion, cutting, gouging and weather.
Working temperature range: -40°C ( -40°F) ~ 70°C (158°F) .
1.Highly abrasion resistant.
2.Good resistance to ozone and weather.
3.NR/SBR rubber compound tube and cover (cloth impression) with multi ply synthetic fabric or steel wire braiding.
4.There are optional inner diameter, and length in terms of size. You can also choose different W.P and B.P to match your devices.
The concrete hose are high pressure pumping components designed to pump concrete and other abrasive mixtures.
Good resistance to high pressure, abrasion, corrosion, weather, ozone, sunlight and cut.
Oil resistant synthetic rubber tube + One layer of high tensile braided steel wire.
Min working temperature is – 40°C, and the max working temperature is + 70°C.
There are optional inner diameter,thickness, length in terms of size.You can also choose different colorsto match your equipments.
We offer OEM/ODM and 3D design, send us your file(or we design for you), lf everything is ok, the production will begin based on your drawings.
