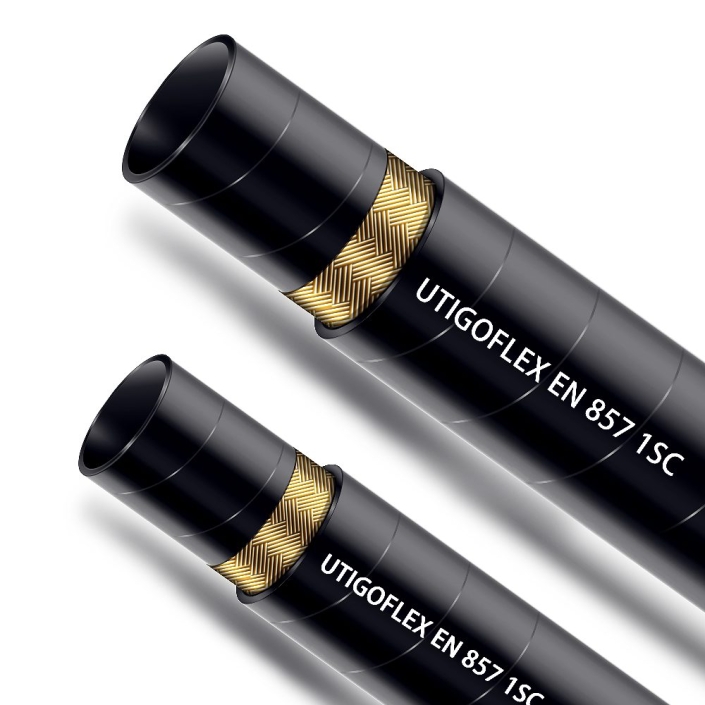

EN 857 1SC Steel Wire Braided Hydraulic Hose
Symboflex, the symbol of flex!
Symboflex, the symbol of flex!
Application:
EN 8571SC steel wire reinforced hydraulic hose is almost similar to EN 853 1SN steel wire reinforced hydraulic hose in structure. And the difference is that it has smaller outside diameters,which solves the problem of the compact and narrow installation space of some equipment piping.
It’s high-strength steel wire reinforcement makes it suitable for high pressure working conditions.
Applicable Specs.: DIN EN857 1SC
Features:
1.Suitable for high pressure working conditions.
2.Resistant to abrasion and corrosion.
3.Resistant to weather,ozone,cut,aging and sunlight.
Material:
Tube: High quality synthetic rubber.
Reinforcement: One layer of high tensile braided steel wire.
Cover: High quality synthetic rubber.
Workingtemperaturerange: -40°C to +100°C.
1.Suitable for high pressure working conditions.
2.Resistant to abrasion and corrosion.
3.Resistant to weather,ozone,cut,aging and sunlight.
It’s high-strength steel wire reinforcement makes it suitable for high pressure working conditions.
Good resistance to abrasion, corrosion, weather, ozone, aging, sunlight and cut.
High quality synthetic rubber tube + One layer of high tensile braided steel wire.
Min working temperature is – 40°C, and the max working temperature is + 100°C.
There are optional inner diameter,thickness, length in terms of size.You can also choose different colorsto match your equipments.
We offer OEM/ODM and 3D design, send us your file(or we design for you), lf everything is ok, the production will begin based on your drawings.
