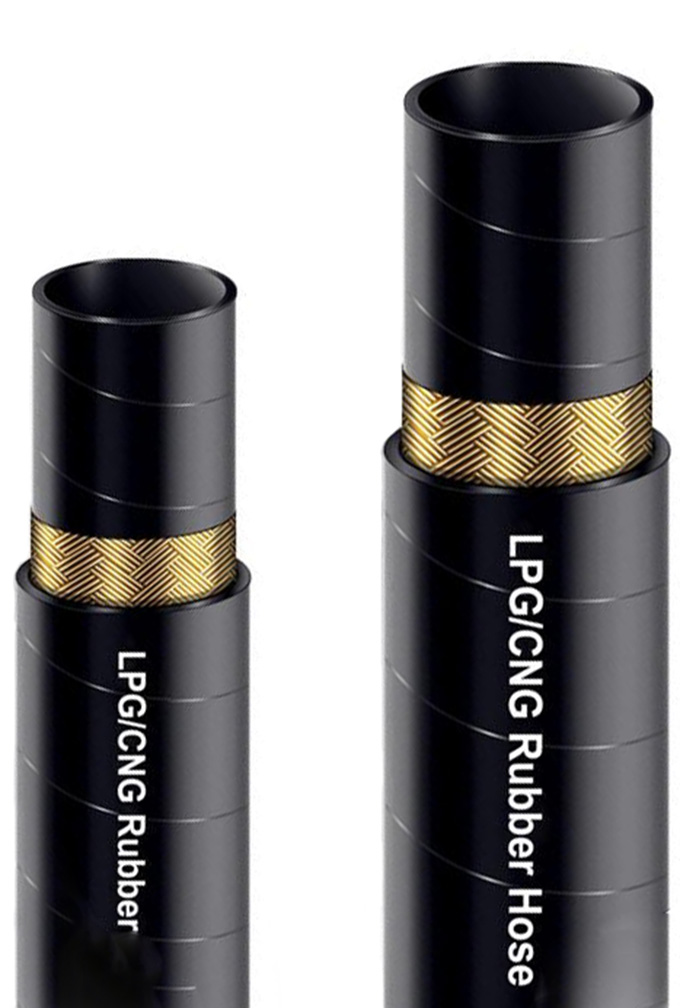

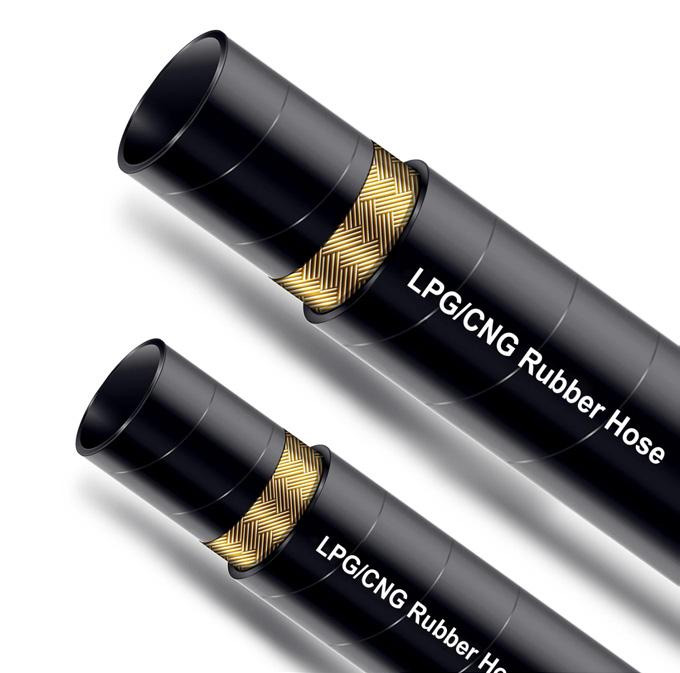

LPG/CNG Rubber Hose

Symboflex, the symbol of flex!

Application:

This hose is suitable for transfer of LPG (Liquid Petroleum Gas) and CNG (Compressed Natural Gas).

Features:

1. Good resistance to high working pressure because of its high tensile braided steel wire reinforcement.

2. Having excellent performance in delivering LPG and CNG by made of permeation resistant synthetic rubber.

3. Good resistance to abrasion, corrosion, weather, ozone, aging, sunlight and cut.

4. Extremely long service life.

Material:

Tube: Permeation resistant synthetic rubber.

Reinforcement: One or two layers of high tensile braided steel wire, or textile braided.

Cover: Weather resistant synthetic rubber.

Working temperature range: -40°C ~ 60°C.

Application

This hose is suitable for transfer of LPG (Liquid Petroleum Gas) and CNG (Compressed Natural Gas).

Good resistance to abrasion, corrosion, weather, ozone, aging, sunlight and cut.

Permeation resistant synthetic rubber tube + One or two layers of high tensile braided steel wire, or textile braided.

Min working temperature is – 40°C, and the max working temperature is + 60°C.

There are optional inner diameter,thickness, length in terms of size.You can also choose different colorsto match your equipments.

We offer OEM/ODM and 3D design, send us your file(or we design for you), lf everything is ok, the production will begin based on your drawings.
