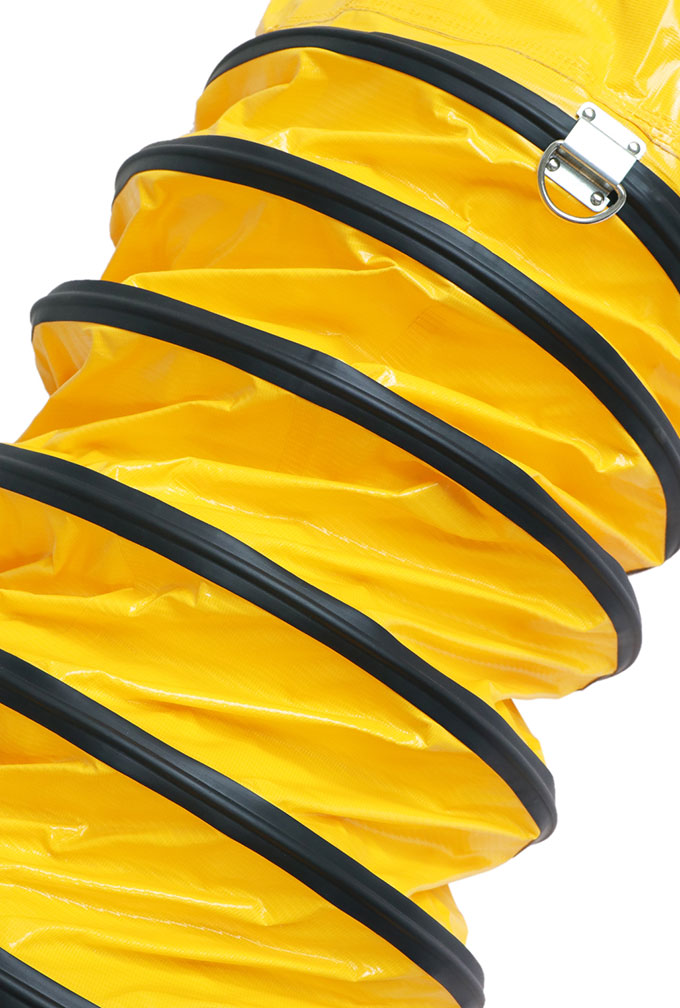

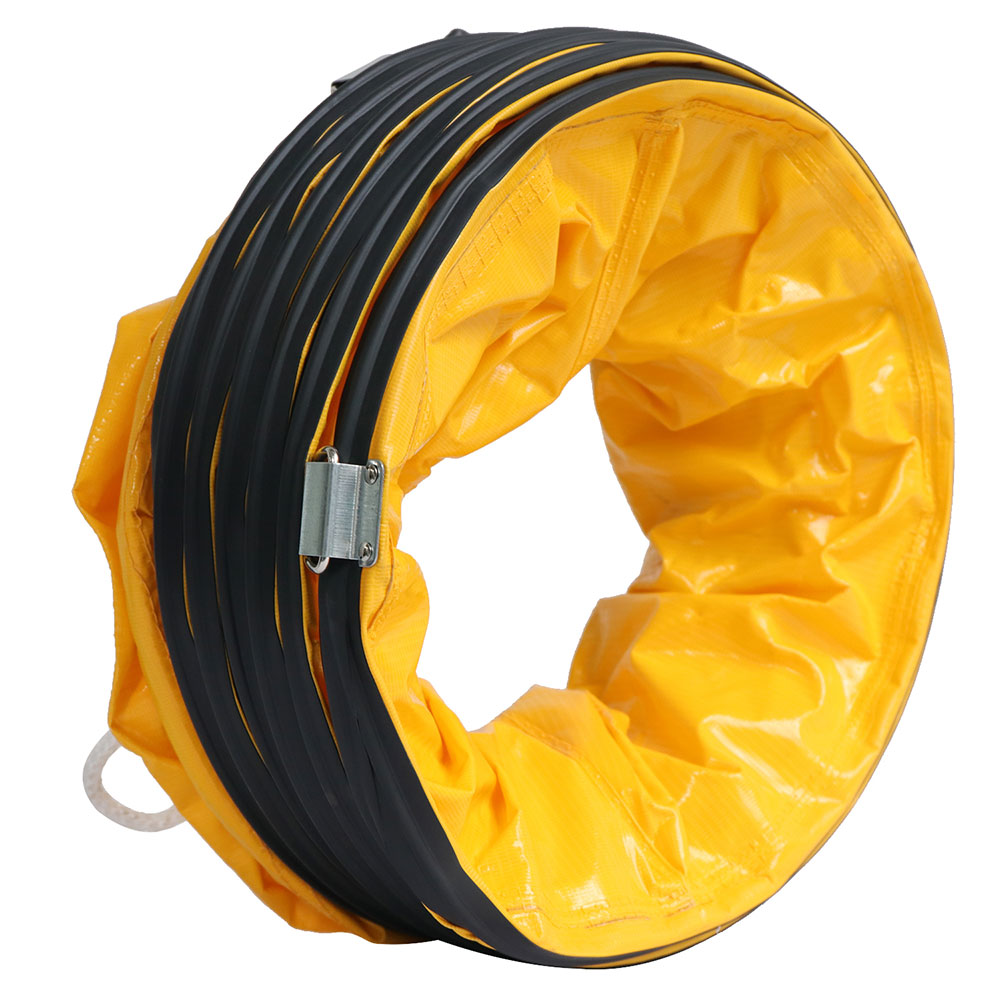

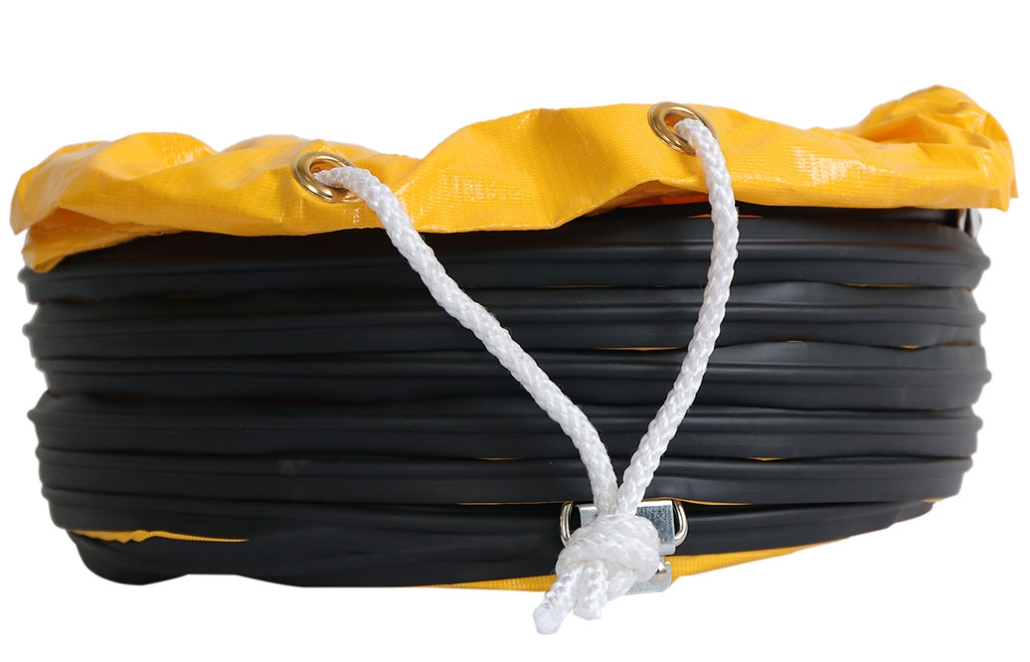

Portable Ventilation Duct
Symboflex, the symbol of flex!
Portable Ventilation Duct
Application:
As ventilation duct ideal for:
1. Widely used in these working environment such as airport, tunnel, basement,waste gas exhaust out.
2. Air conditioning and ventilation of fumes, light duty dust extraction and air movement.
3. As a flexible connection between grilles diffusers, fans and other air movement units.
Features:
1. Highly flexible.
2. Flame retardant.
3. Could be compressible and easy to carry.
4. Oil, Acid &Alkali Resistant.
5. Very small bending radius.
6. Kink proof.
7. Polyester fabric coated with PVC is leakage resistant.
8. Steel wire spiral is abrasion resistant with strip cover.
9. Various colors are available.
10. Anti static version is available.
Material:
Wall: High density polyester weave coated PVC on both sides.
Spiral: Reinforced steel wire.
Exterior spiral cover: PVC strip.
Working temperature range: -20°C to +80°C .
Product Advantages
1. Highly flexible.
2. Flame retardant.
3. Could be compressible and easy to carry.
4. Oil, Acid &Alkali Resistant.
5. Very small bending radius.
6. Kink proof.
7. Polyester fabric coated with PVC is leakage resistant.
8. Steel wire spiral is abrasion resistant with strip cover.
9. Various colors are available.
10. Anti static version is available.
Application
Widely used in these working environment such as airport, tunnel, basement,waste gas exhaust out.
Feature
As a flexible connection between grilles diffusers, fans and other air movement units.
Material
High density polyester weave coated PVC on both sides wall + Reinforced steel wire spiral.
Temperature
Min working temperature is – 20°C, and the max working temperature is + 80°C.

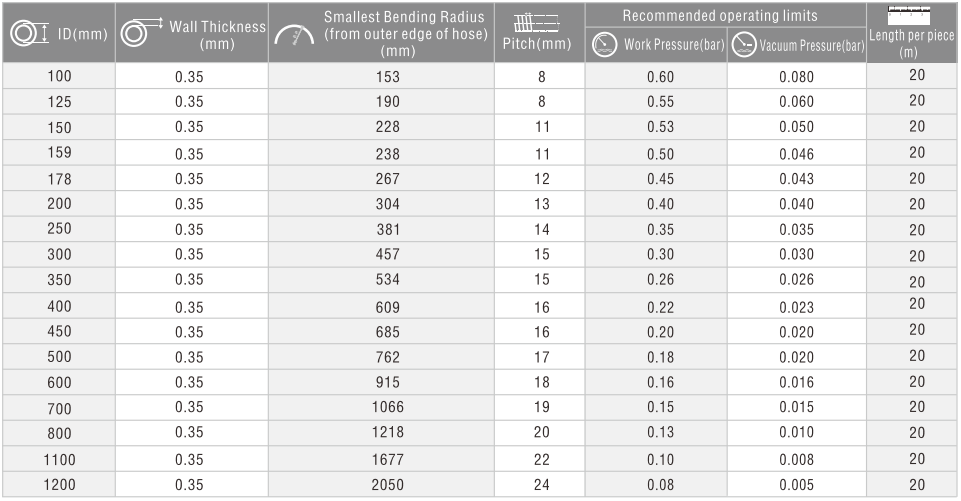

Multiple types
There are optional inner diameter,thickness, length in terms of size.You can also choose different colorsto match your equipments.
Private design
We offer OEM/ODM and 3D design, send us your file(or we design for you), lf everything is ok, the production will begin based on your drawings.
