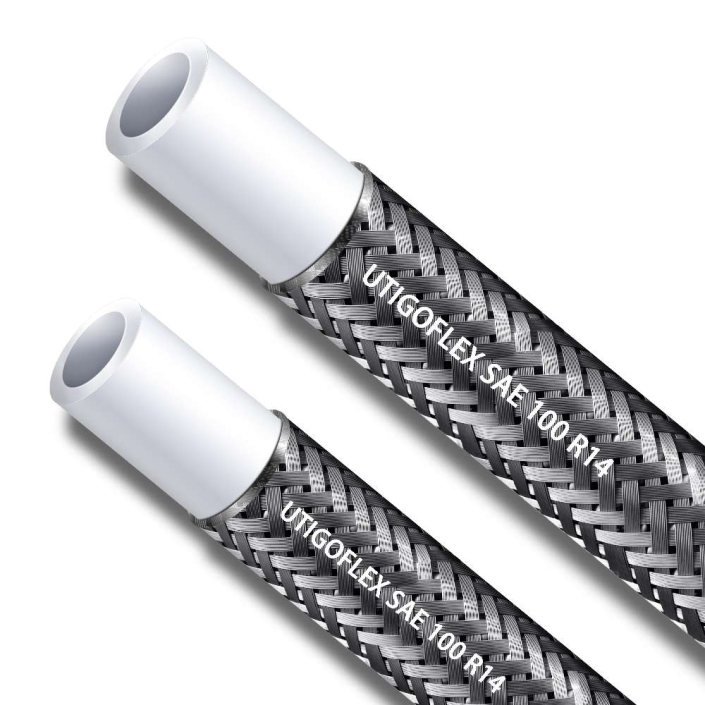

SAE 100 R14 Stainless Steel Wire Braided with PTFE Hose
Symboflex, the symbol of flex!
SAE 100 R14 Stainless Steel Wire Braided with PTFE Hose
Application:
This hose is suitable for delivering petroleum or water-based hydraulic fluids. This kind of hose can be divided into two kinds according to the structure and material:type A and type B.
Features:
(Type A)The tube is made from polytetrafluoroethylene (PTFE) and the reinforcement is made from one layer of 303 XX stainless steel.
(Type B) It is almost similar to type A in structure,but it has an inner surface which is electrically conductive.
And the inner surface is used to prevent the electrostatic charge.
Material:
Type A:it is composed of tube and reinforcement. The tube is made from PTFE and the reinforcement is made from one layer of 303 XX stainless steel.
Type B:it is composed of inner surface,tube and reinforcement. The tube is made from PTFE and the reinforcement is made from one layer of 303 XX stainless steel.
Workingtemperaturerange: -54℃ to +204℃.
Product Advantages
(Type A)The tube is made from polytetrafluoroethylene(PTFE)and the reinforcement is made from one layer of 303 XX stainless steel.
(Type B) It is almost similar to type A in structure,but it has an inner surface which is electrically conductive.
And the inner surface is used to prevent the electrostatic charge.
Application
This hose is suitable for delivering petroleum or water-based hydraulic fluids
Feature
Good resistance to high pressure, oil, weather and hydraulic fluids.
Material
The tube is made from PTFE and the reinforcement is made from one layer of 303 XX stainless steel.
Temperature
Min working temperature is – 54°C, and the max working temperature is + 204°C.
Multiple types
There are optional inner diameter,thickness, length in terms of size.You can also choose different colorsto match your equipments.
Private design
We offer OEM/ODM and 3D design, send us your file(or we design for you), lf everything is ok, the production will begin based on your drawings.
