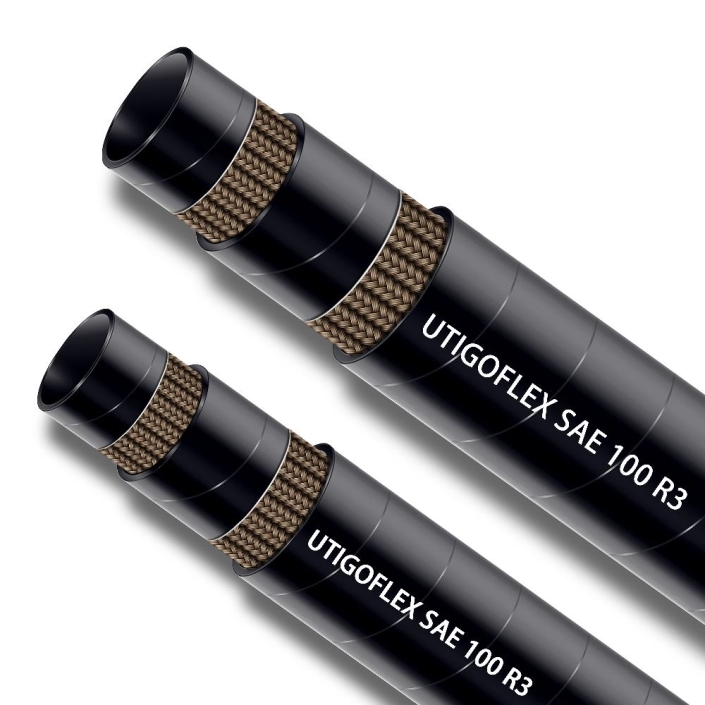

SAE100 R3
Symboflex, the symbol of flex!
SAE100 R3
Application:
This hose is suitable for delivering petroleum or water-based hydraulic fluids. It’s mainly used in low pressure conditions and it is also used in pneumatic applications.
Applicable specs.: SAE J517 100 R3, ISO 4079 R3.
Features:
1.It’s lightweight and flexible by made from two layers of braided textile reinforcement.
2.It doesn’t react with petroleum or water-based hydraulic fluids by made from high quality oil resistant synthetic rubber.
3.Good resistance to oil, abrasion, corrosion and weather.
4.Easy to operate.
5.With longer service life.
Material:
Tube: High quality oil resistant synthetic rubber.
Reinforcement: Two layers of braided textile.
Cover: High quality abrasion, corrosion, weather and oil resistant synthetic rubber.
Working temperature range: -40°C to +100°C.
Product Advantages
1.It’s lightweight and flexible by made from two layers of braided textile reinforcement.
2.It doesn’t react with petroleum or water-based hydraulic fluids by made from high quality oil resistant synthetic rubber.
3.Good resistance to oil, abrasion, corrosion and weather.
4.Easy to operate.
5.With longer service life.
Application
This hose is mainly used in low pressure conditions and it is also used in pneumatic applications.
Feature
Good resistance to high pressure, oil abrasion, corrosion and weather.
Material
Oil resistant synthetic rubber tube + Two layers of braided textile.
Temperature
Min working temperature is – 40°C, and the max working temperature is + 100°C.
Multiple types
There are optional inner diameter,thickness, length in terms of size.You can also choose different colorsto match your equipments.
Private design
We offer OEM/ODM and 3D design, send us your file(or we design for you), lf everything is ok, the production will begin based on your drawings.
