SAE 100 R5 Steel Wire Braided Hydraulic Hose
Symboflex, the symbol of flex!
SAE 100 R5 Steel Wire Braided Hydraulic Hose
Application:
This hose is suitable for impacted medium pressure hydraulic petroleum-based oils,lubricating oils,overheating lubricating oil and water &air piping,such as air brake,power steering,fuel filter,turbocharger and oil cylinder of heavy commercial vehicles.
Applicable specs.: SAE J517 100 R5
Features:
1.The tube is made from black synthetic rubber,which is resistant to oils and heat.
2.The reinforcement is made from one layer of single high tensile braided steel wire,making the hose have solid structure.
3.The cover is made from braided fiber,making the hose resistant to weather,oil,mildew and ozone.

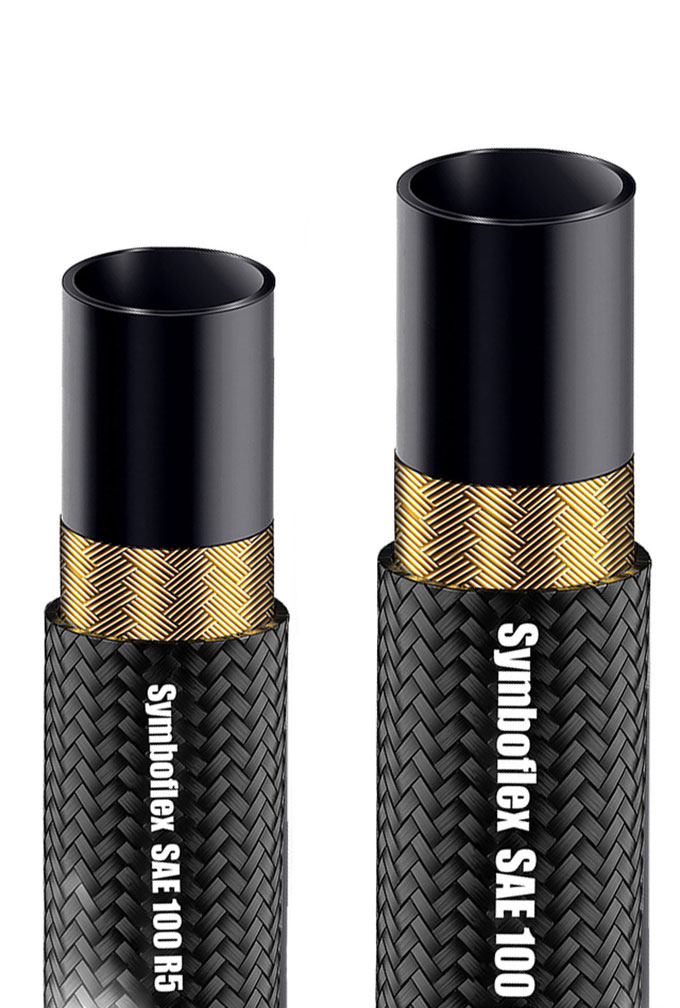

Material:
Tube: Oil resistant synthetic rubber.
Reinforcement: One layer of single braided steel wire.
Cover: Braided fiber.
Working temperature range: -40°C to +100°C.
Product Advantages
1.The tube is made from black synthetic rubber,which is resistant to oils and heat.
2.The reinforcement is made from one layer of single high tensile braided steel wire,making the hose have solid structure.
3.The cover is made from braided fiber,making the hose resistant to weather,oil,mildew and ozone.
Application
This hose is suitable for impacted medium pressure hydraulic petroleum-based oils,lubricating oils,overheating lubricating oil and water &air piping,
Feature
Good resistance to oils, heat, weather, mildew and ozone.
Material
Oil resistant synthetic rubber tube + One layer of single braided steel wire.
Temperature
Min working temperature is – 40°C, and the max working temperature is + 100°C.
Multiple types
There are optional inner diameter,thickness, length in terms of size.You can also choose different colorsto match your equipments.
Private design
We offer OEM/ODM and 3D design, send us your file(or we design for you), lf everything is ok, the production will begin based on your drawings.
